제품 세부 정보

집 상품

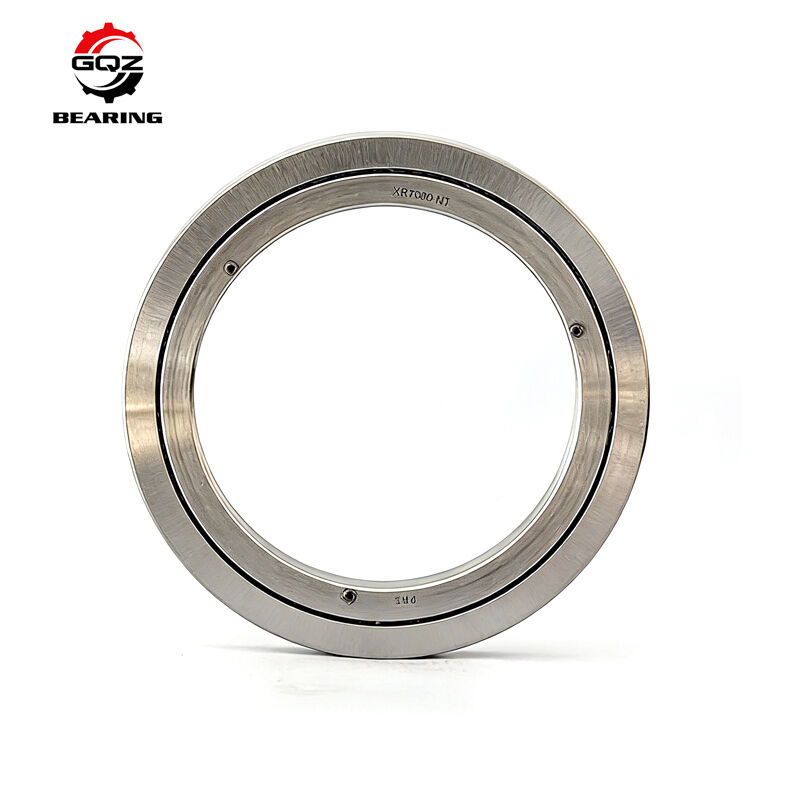

XR889058 XR889059 XR889060 Cross Tapered Roller Bearing 1028.7x1327.15x114.3mm Large Bearing

브랜드 이름:	GQZ
모델 번호:	XR889058 /XR889059/XR889060
모크:	5개
가격:	$5000-$5019
배달 시간:	지불을받은 후 3 일
지불 조건:	T/T 또는 Western Union 또는 PayPal

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

ISO9001/ISO14001/GJB9001

재료:

GCr15 베어링 강철

제품명:

교차형 롤러 태도

ID(MM):

1028.7

외경(mm):

1327.15

폭(mm):

114.3

정밀 등급:

구조:

테이퍼 롤러 베어링

보증:

12개월

포장 세부 사항:

먼저 카톤에 포장 한 다음 외부 포장을위한 목재 케이스로 강화

공급 능력:

달 당 3,000pcs

제품 설명

XR889058 XR889059 XR889060 Cross Tapered Roller Bearing 1028.7x1327.15x114.3mm | Large Bearing

Product Overview

The XR889058 / XR889059 / XR889060 Cross Tapered Roller Bearing is an ultra large, heavy-duty precision bearing designed for CNC machines, slewing systems, and large industrial equipment. With dimensions of 1028.7mm inner diameter, 1327.15mm outer diameter, and 114.3mm width, it is engineered for extreme load and high-precision applications.

This metric-series bearing provides exceptional rigidity, high torque capacity, and stable rotational performance, making it ideal for large-scale rotary platforms and heavy-duty machinery.

Model: XR889058 / XR889059 / XR889060
Size: 1028.7x1327.15x114.3mm
Type: Cross Tapered Roller Bearing
Metric ultra large design
Suitable for CNC and slewing systems

Key Features

Metric Ultra Large Design: Suitable for large-scale industrial systems.
Extreme Load Capacity: Supports radial, axial, and moment loads simultaneously.
High Rigidity Structure: Cross tapered rollers minimize deformation.
Triple Model Compatibility: Interchangeable with XR889058, XR889059, XR889060.
Precision Performance: Ensures stable and accurate rotation.
Long Service Life: Heat-treated bearing steel for durability.

Technical Specifications

Parameter	Specification
Model	XR889058 / XR889059 / XR889060
Inner Diameter (ID)	1028.7 mm
Outer Diameter (OD)	1327.15 mm
Width (H)	114.3 mm
Type	Cross Tapered Roller Bearing
Structure	Crossed Tapered Rollers
Material	Bearing Steel
Preload	Custom
Accuracy Class	P5 / P4 optional
Application	CNC Machines, Slewing Systems, Heavy Equipment

Applications

CNC Machine Tools – High precision machining for large components.
Slewing Systems – Smooth rotation for large rotary platforms.
Heavy Industrial Equipment – Reliable performance under extreme loads.
Construction Machinery – Suitable for cranes and large engineering equipment.

Timken	KG	d	D	B	r	Cr (KN)	Co (KN)	Cr (KN)
-	4.9	150	230	30	1	95.2	156	111	279	1100
-	5.15	160	240	30	1.1	96.8	162	118	300	1000
-	6.7	200	280	30	1.5	102	175	120	320	9000
XR496051	5.59	203.2	279.4	31.75	1.5	110	188	134	348	850
XR496052	5.59	203.2	279.4	31.75	1.5	110	188	134	348	850
-	5.4	240	300	30	1	88	184	114	361	750
-	4.5	250	310	25	1	88	188	114	361	700
-	13	250	350	40	1.3	187	355	228	657	670
JXR637050	12.5	300	400	36.492	1.5	183	355	223	657	560
JXR637050	12.5	300	400	37	1.5	183	355	223	657	560
JXR678054	38	300	480	60	1.5	258	495	35	920	600
JXR652050	19.5	310	425	45	2.5	216	427	281	837	640
JXR678052	32	330.2	457.2	63.5	3.3	264	515	312	954	620
-	27	350	470	50	3.3	308	635	376	1180	560
JXR699050	30	370	495	50	3.3	93.6	-	119	-	600
-	15	400	480	40	1.1	216	497	281	957	430
-	46.5	400	550	60	2.5	429	920	523	1700	400
XR736052	27.5	432.003	571.5	38.1	3.3	83	910	530	1600	400
JXR766051	51	457.2	609.6	63.5	3.3	396	856	514	1680	420
JXR766052	62	424.95	614.924	65	3.3	470	960	600	1720	380
JXR820060	100	580	760	80	3.3	627	1380	765	2560	300
JXR820061	100	580	760	80	6.4	627	1380	765	2560	300
JXR836050	148	600	830	80	6.4	680	1460	820	2870	300
JXR8444050	150	685.8	914.4	79.375	6.4	693	1660	900	3250	260
JXR855053	150	685.8	914.4	79.375	3.3	693	1660	900	3250	260
JXR855056	150	685.8	914.4	79.375	3.3	693	1660	900	3250	260
JXR882054	185	901.7	1117.6	82.555	3	781	2060	1060	4290	200
JXR882055	185	901.7	1117.6	82.555	3.3	781	2060	1060	4290	200
JXR882058	158	939.8	1117.6	82.55	3	920	2580	1200	5000	200
-	215	950	1170	85	3	968	2690	1310	5600	215
JXR889058	430	1028.7	1327.15	114.3	3.3	1230	3310	1600	6490	430
JXR889059	358	1028.7	1327.15	95.25	3.3	1060	3100	1420	6020	450
JXR889060	430	1028.7	1327.15	114.3	3.3	1230	3310	1600	6490	430
-	350	1270	1524	95.25	3.3	1300	3830	1760	2980	95
JXR897051	500	1549.4	1828.8	101.6	3.3	1400	4510	1890	9400	80
-	675	1879.6	2197.1	101.6	5.4	1510	5240	2040	10900	43
-	1130	2463.8	2819.4	114.3	5.4	2330	8740	3150	18200	18200

Why Choose GQZ Bearing?

Precision Manufacturing Expertise
Stable Quality & Performance
Flexible Customization Options
Fast Delivery & Global Supply

FAQ

Q1: Can this bearing replace XR889058, XR889059, and XR889060?
A1: Yes, it is designed as an interchangeable solution for all three models.

Q2: Is this bearing suitable for slewing applications?
A2: Yes, it is ideal for large rotary systems requiring high load capacity.

Q3: Do you support customization?
A3: Yes, we offer customization for preload, precision grade, and materials.

Power your large-scale systems with XR889058 / XR889059 / XR889060 Cross Tapered Roller Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
