제품 세부 정보

Created with Pixso. Created with Pixso. 상품 Created with Pixso.
딥 그루브 볼베어링
Created with Pixso. Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

브랜드 이름: GQZ /OEM
모델 번호: 6211zz
모크: 1개
가격: USD 0.50 to 1.00
배달 시간: 3-5 영업일
지불 조건: T/T,웨스턴 유니온,머니그램
자세한 정보
원래 장소:
중국
인증:
ISO9001:2015
폭(B):
21mm
애플리케이션:
산업용 모터, 팬, 압축기, 농업 기계, 컨베이어
외경(D):
100mm
내경(d):
55mm
재료:
GCr15 크롬 베어링강
베어링 모델:
6211zz
특징:
방진 강철 실드, 저소음, 사전 그리스 처리, 중속
밀봉 종류:
양면 강철 쉴드 ZZ
행 수:
단일 행
정밀 등급:
P0 / P6
포장 세부 사항:
개별적 패킹상자에서
공급 능력:
달 당 100000 세트
제품 설명
Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Product Overview

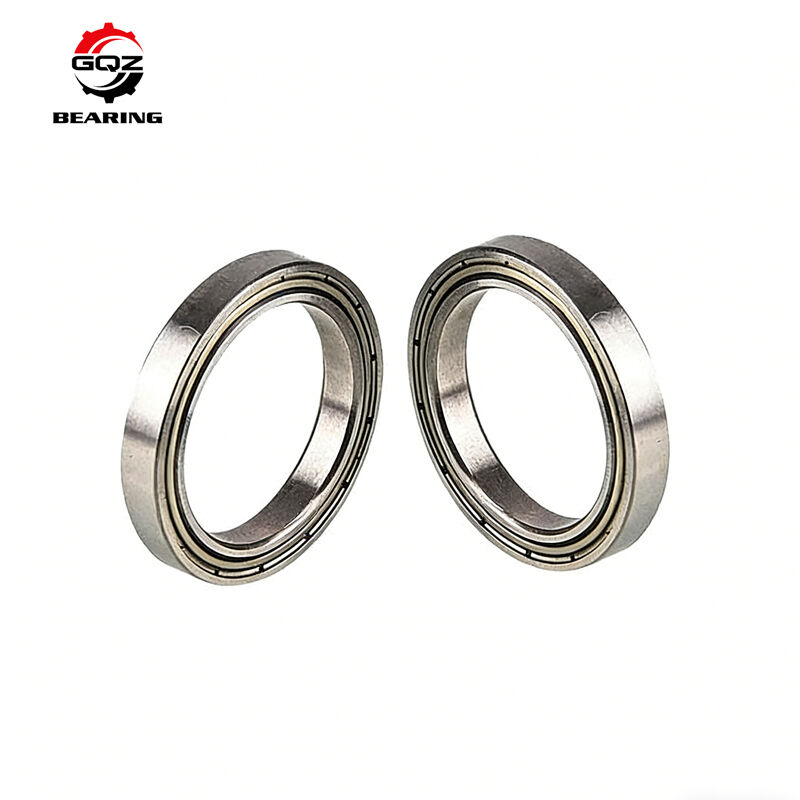

  • 6211ZZ is a single row deep groove ball bearing sized 55×100×21mm with double-sided stamped steel ZZ shields. The metal shield design blocks dust and debris, suitable for dry and clean working environments. It can withstand combined radial load and light bidirectional axial load. Pre-lubricated at factory for instant installation, this bearing runs smoothly at medium-high speed and is widely used in general industrial transmission equipment.

*Send us your inquiry now to get samples and the latest factory quotation for 6211ZZ bearings.

Key Specifications
Specification Value
Bearing Model 6211ZZ
Bore d 55 mm
Outer diameter D 100 mm
Width B 21 mm
Min chamfer r 1.5 mm
Dynamic load Cr 47.5 kN
Static load C0r 29.3 kN
Limiting speed (Grease) 7500 r/min
Limiting speed (Oil) 8600 r/min
Approximate weight 0.61 kg
Seal Type Double-sided steel shield ZZ
Clearance C0 standard, C3 optional
Precision P0 standard, P6 optional
Material GCr15 Chrome Bearing Steel
Main Features
  • Double-sided ZZ steel dust shields, effectively prevent dust contamination
  • Standard C0 normal clearance, C3 enlarged clearance optional for high-temperature conditions
  • Stamped steel cage with low friction, stable rotation and low vibration
  • Withstand radial load plus light bidirectional axial load
  • Pre-filled grease, no extra lubrication needed during initial assembly
  • P0 precision standard, P6 precision grade available on request

Typical Applications
  • General industrial motors and ventilation fans
  • Compressors and air pump equipment
  • Conveyor roller transmission machinery
  • Agricultural processing machinery
  • Light-duty gearboxes and small rotary devices

*Contact our engineering team today for professional bearing selection guidance and technical parameters.

Why Choose GQZ Bearing
  • High-purity GCr15 chrome bearing steel with strict heat treatment for long service life and wear resistance.
  • Precision ground raceways and balls ensure quiet, smooth running performance.
  • Multiple options including clearance grades and precision to match diverse working conditions.
  • Abundant spot stock for ZZ sealed deep groove bearings, support sample orders and fast bulk delivery.
  • OEM laser marking and customized packaging services for wholesale buyers.

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

FAQ

Q1: What are the dimensions of 6211ZZ?
A1: Bore 55 mm, Outer diameter 100 mm, Width 21 mm.

Q2: What does ZZ stand for?
A2: Double-sided steel dust shields to block dust and dirt.

Q3: Can it bear heavy axial load?
A3: Only suitable for light bidirectional axial load, mainly for radial loads.

Q4: Clearance options?
A4: C0 standard clearance, C3 enlarged clearance optional.

Q5: Is it pre-greased?
A5: Yes, factory pre-lubricated for easy installation.

*Place bulk orders with GQZ, enjoy stable stock, short lead time and reliable after-sales service.
